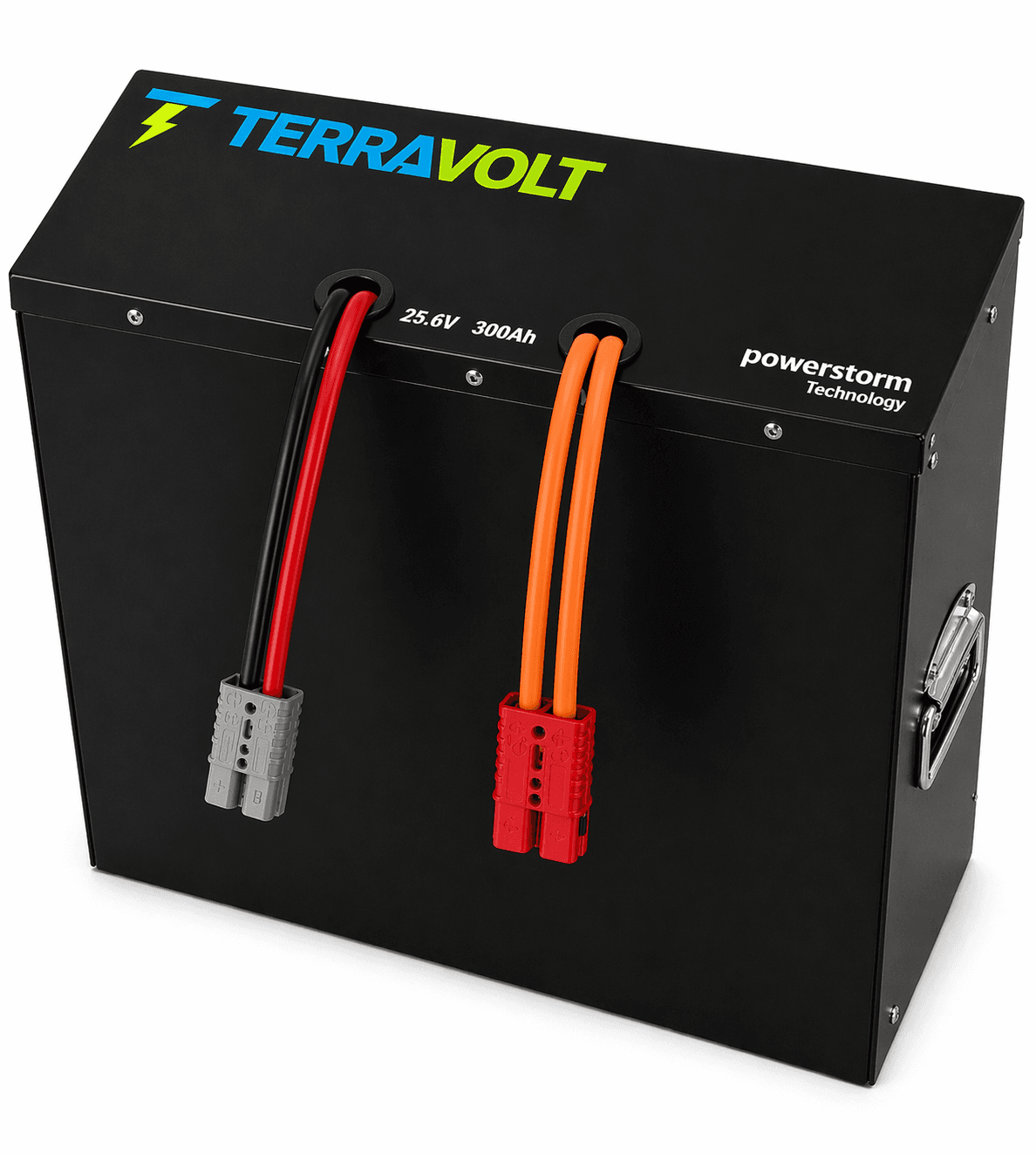

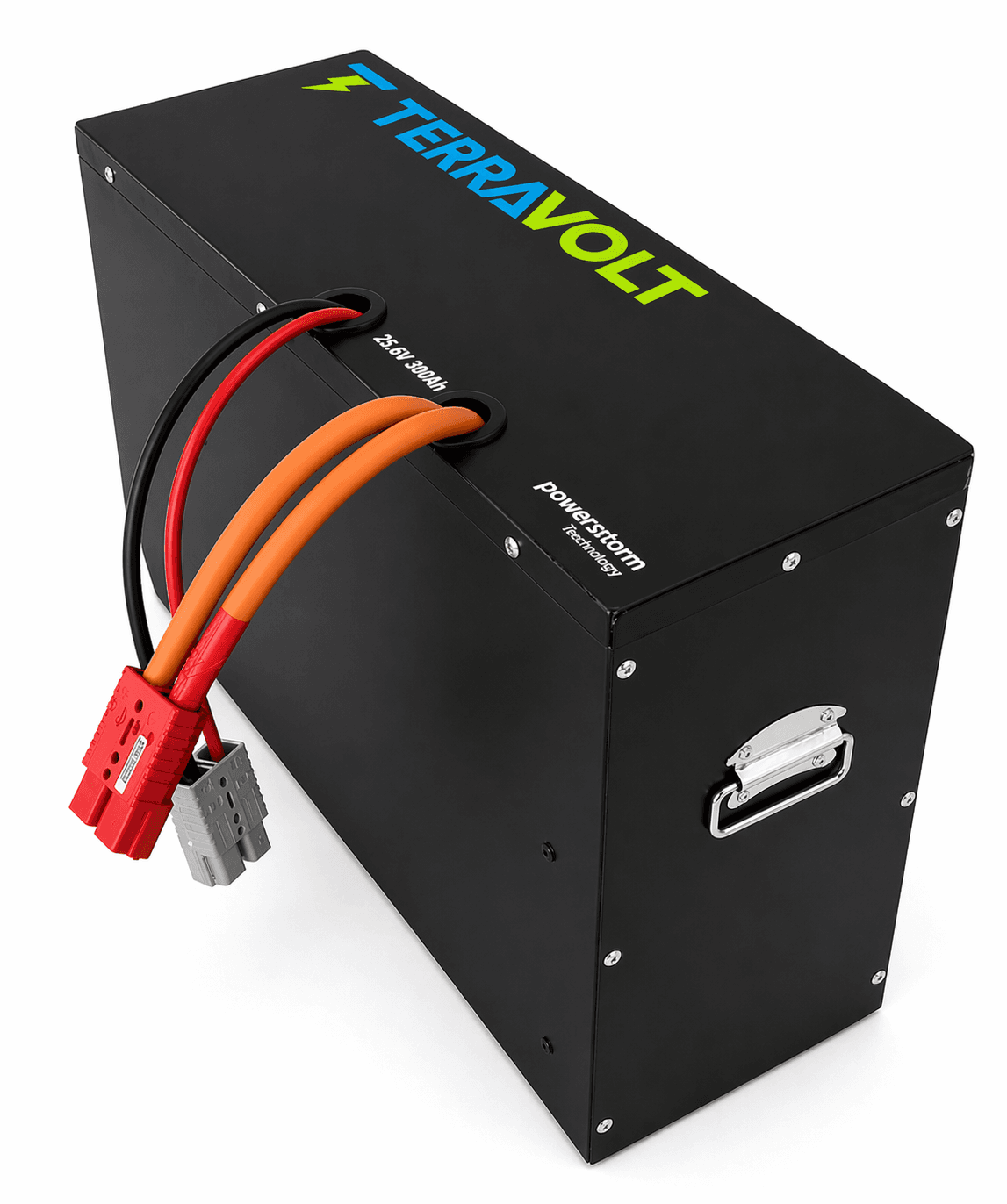

PST 7.68kWh EV · 25.6V 300Ah
A lithium battery pack designed for pallet stackers and electric forklifts, offering 7.68 kWh, an integrated smart BMS, and maintenance-free operation without water topping.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Chemistry | LiFePO₄ (lithium iron phosphate) |
|---|---|
| Cell type | Prismatic |
| Nominal voltage | 25.6 V |
| Rated capacity | 300 Ah |
| Energy | 7.68 kWh |
| Operating voltage | 21.6 V – 28.8 V |
| Charge current | 150 A (0.5C) |
| Discharge current | 300 A (1C) |
| Dimensions (mm) | 660 × 250 × 500 |
|---|---|
| Weight | 90 kg |
| IP rating | IP54 |
|---|---|
| Operating temperature | 0 to 55 °C |
| Communication | RS485 / CAN 2.0 / Bluetooth (optional) |
| Cycle life | ≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | 3 years or 3000 cycles, whichever comes first |
See solution guides: Forklifts & pallet stackers, EV & electric mobility
Ah (300 Ah) is charge capacity at the nominal voltage; kWh (7.68 kWh) is stored energy, equal to 25.6 V × 300 Ah. Energy is what determines how long a load can run.
Published: RS485 / CAN 2.0 / Bluetooth (optional). Compatibility with a specific inverter or controller is not stated on the datasheet — ask us to confirm for your equipment.
The enclosure is rated IP54. Please follow the datasheet and installation guidance for the environment.
≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
