EV packs
PST 10.24kWh LiFePO4 EV Battery Pack
- Energy
- 10.24 kWh
- Voltage
- 51.2 V
- Capacity
- 200 Ah
High-capacity 51.2 V, 200 Ah LiFePO₄ EV pack for heavier-duty electric vehicles.
Loading…
EV Battery Packs

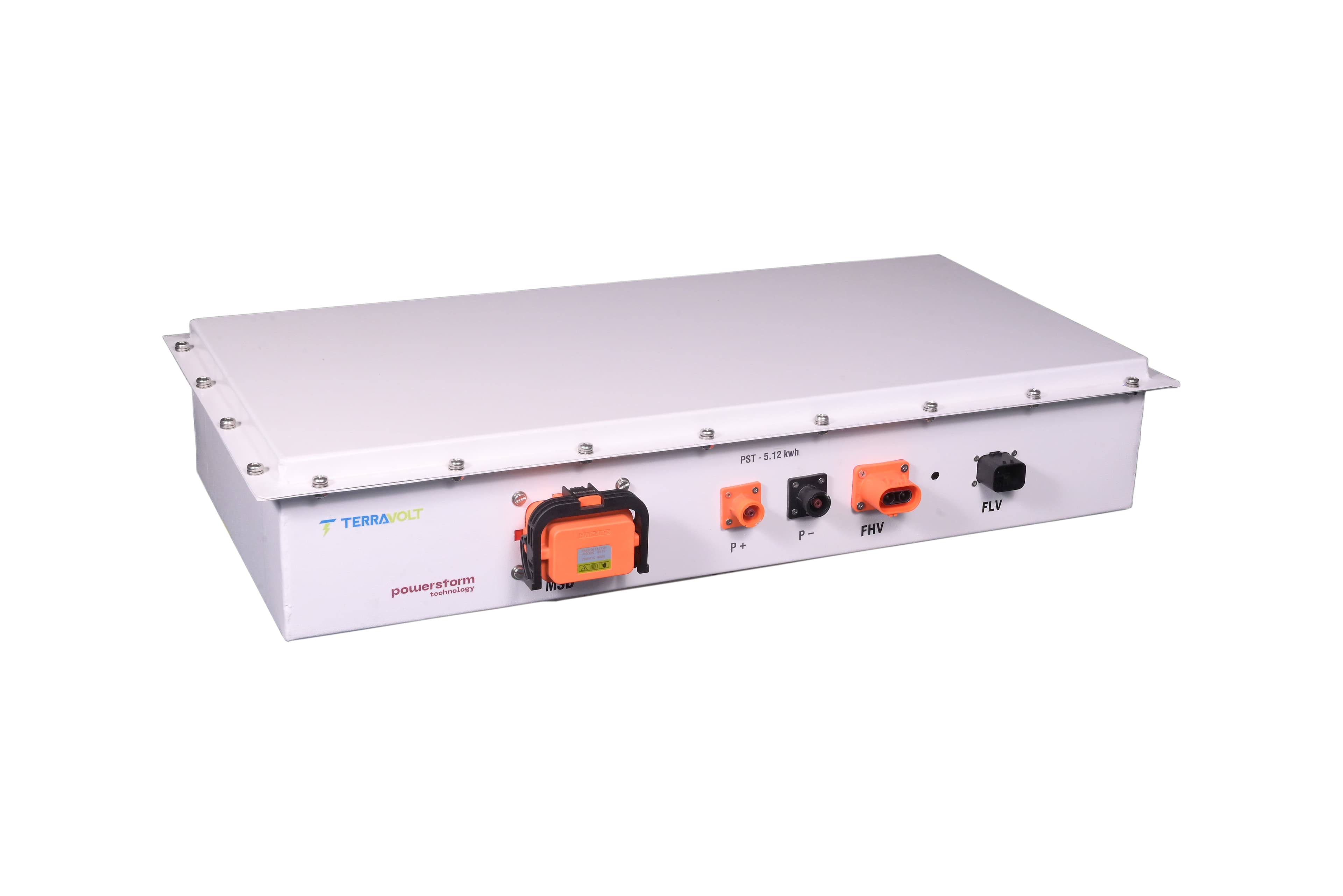

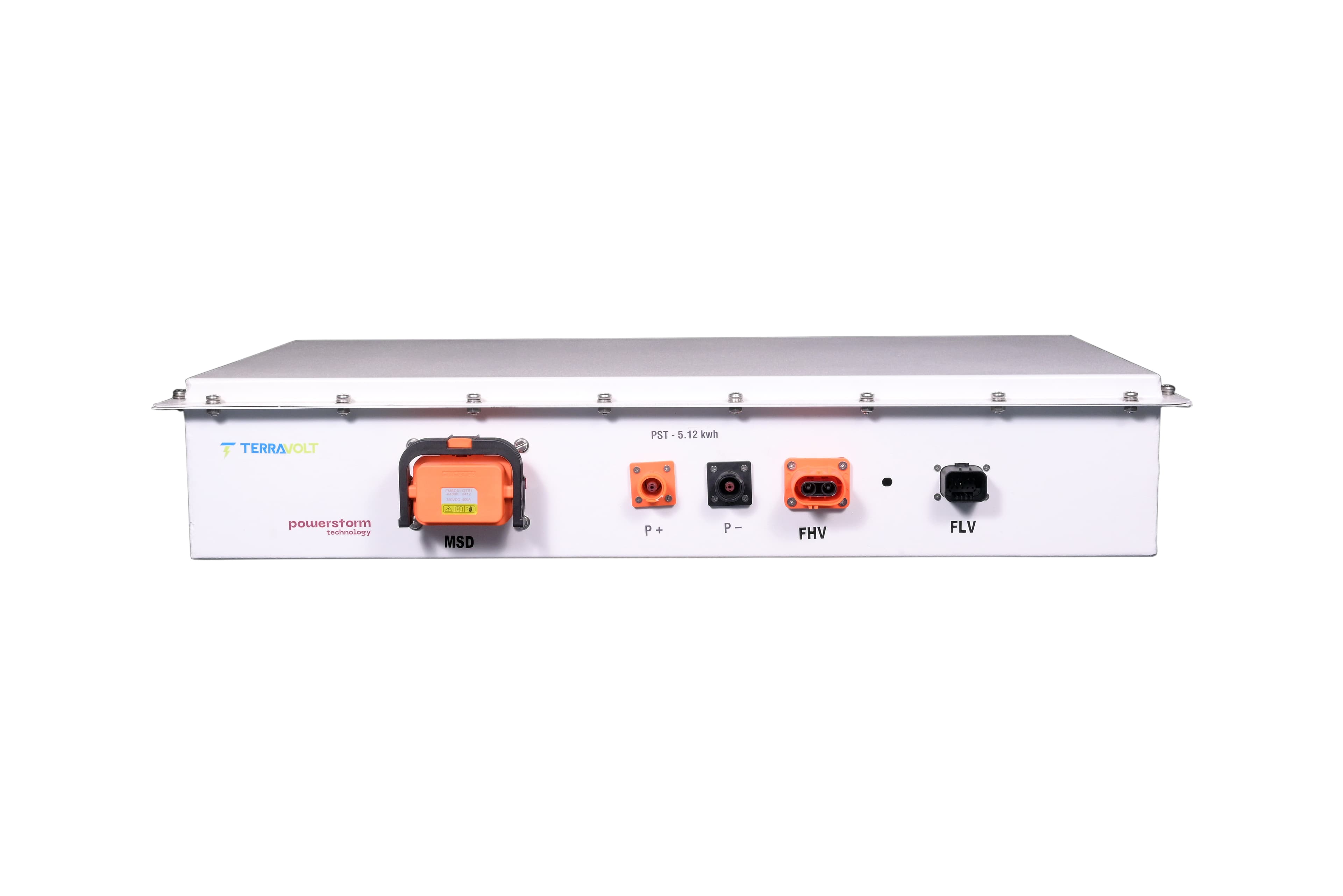

PST 5.12kWh EV · 51.2V 100Ah
A LiFePO₄ battery pack for electric vehicles with EV-grade BMS protection, 5.12 kWh of energy and support for 1C discharge. Published uses include forklifts, pallet stackers, e-rickshaws and golf carts.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Chemistry | LiFePO₄ (lithium iron phosphate) |
|---|---|
| Cell type | Prismatic |
| Nominal voltage | 51.2 V |
| Rated capacity | 100 Ah |
| Energy | 5.12 kWh |
| Operating voltage | 43.2 V – 57.6 V |
| Charge current | 50 A (0.5C) |
| Discharge current | 100 A (1C) |
| Dimensions (mm) | 790 × 440 × 140 |
|---|---|
| Weight | 51 kg |
| IP rating | IP55 |
|---|---|
| Operating temperature | 0 to 55 °C |
| Communication | RS485 / CAN 2.0 / Bluetooth (optional) |
| Cycle life | ≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | 3 years or 3000 cycles, whichever comes first |
See solution guides: Forklifts & pallet stackers, EV & electric mobility
Ah (100 Ah) is charge capacity at the nominal voltage; kWh (5.12 kWh) is stored energy, equal to 51.2 V × 100 Ah. Energy is what determines how long a load can run.
Published: RS485 / CAN 2.0 / Bluetooth (optional). Compatibility with a specific inverter or controller is not stated on the datasheet — ask us to confirm for your equipment.
The enclosure is rated IP55. Please follow the datasheet and installation guidance for the environment.
≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
EV packs
High-capacity 51.2 V, 200 Ah LiFePO₄ EV pack for heavier-duty electric vehicles.
EV packs
25.6 V, 300 Ah LiFePO₄ pack designed for pallet stackers and electric forklifts.
Send us your requirement — voltage, capacity, application — and our team will respond with the most suitable option from the range, or confirm what can be customised.
