EV Battery Packs

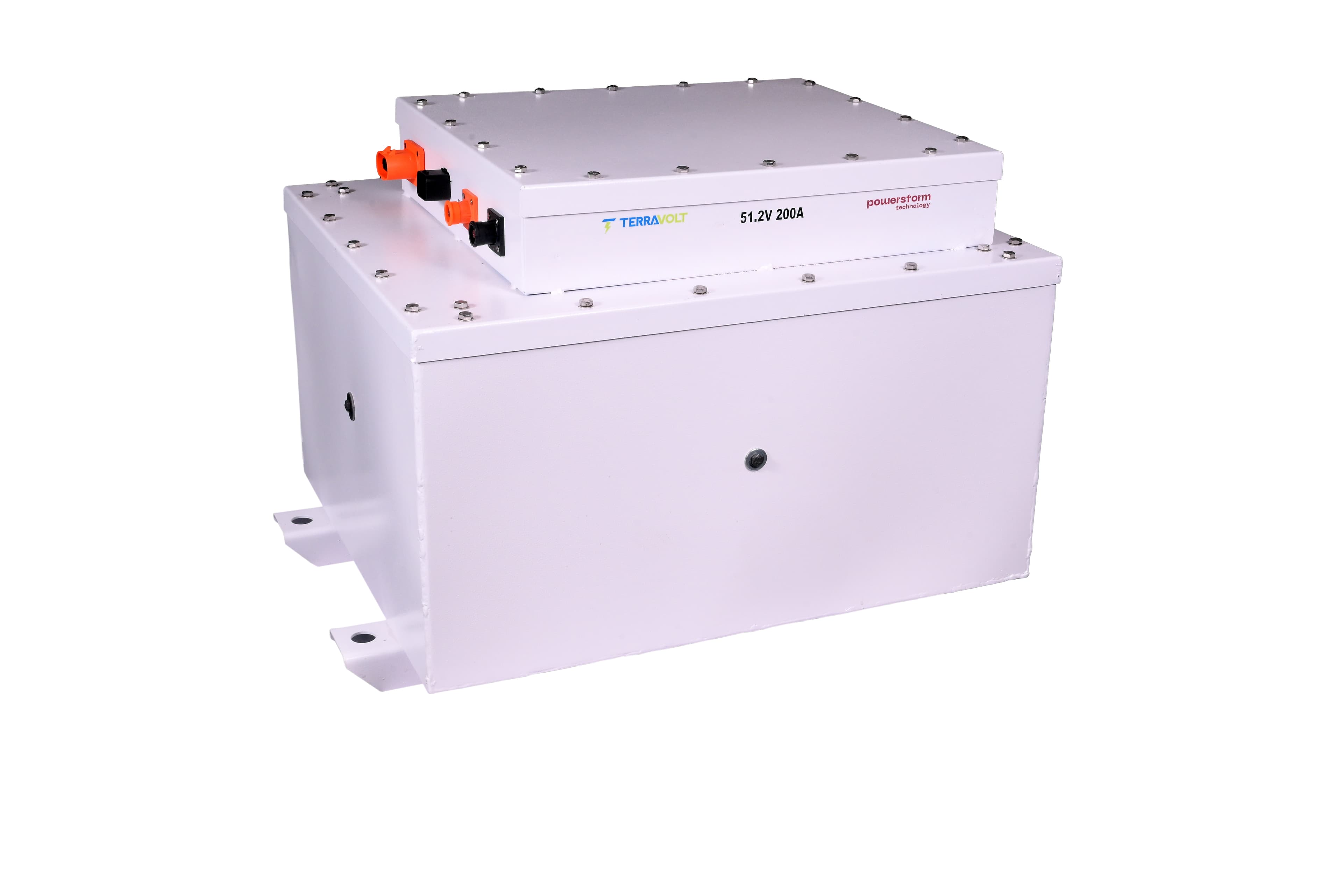

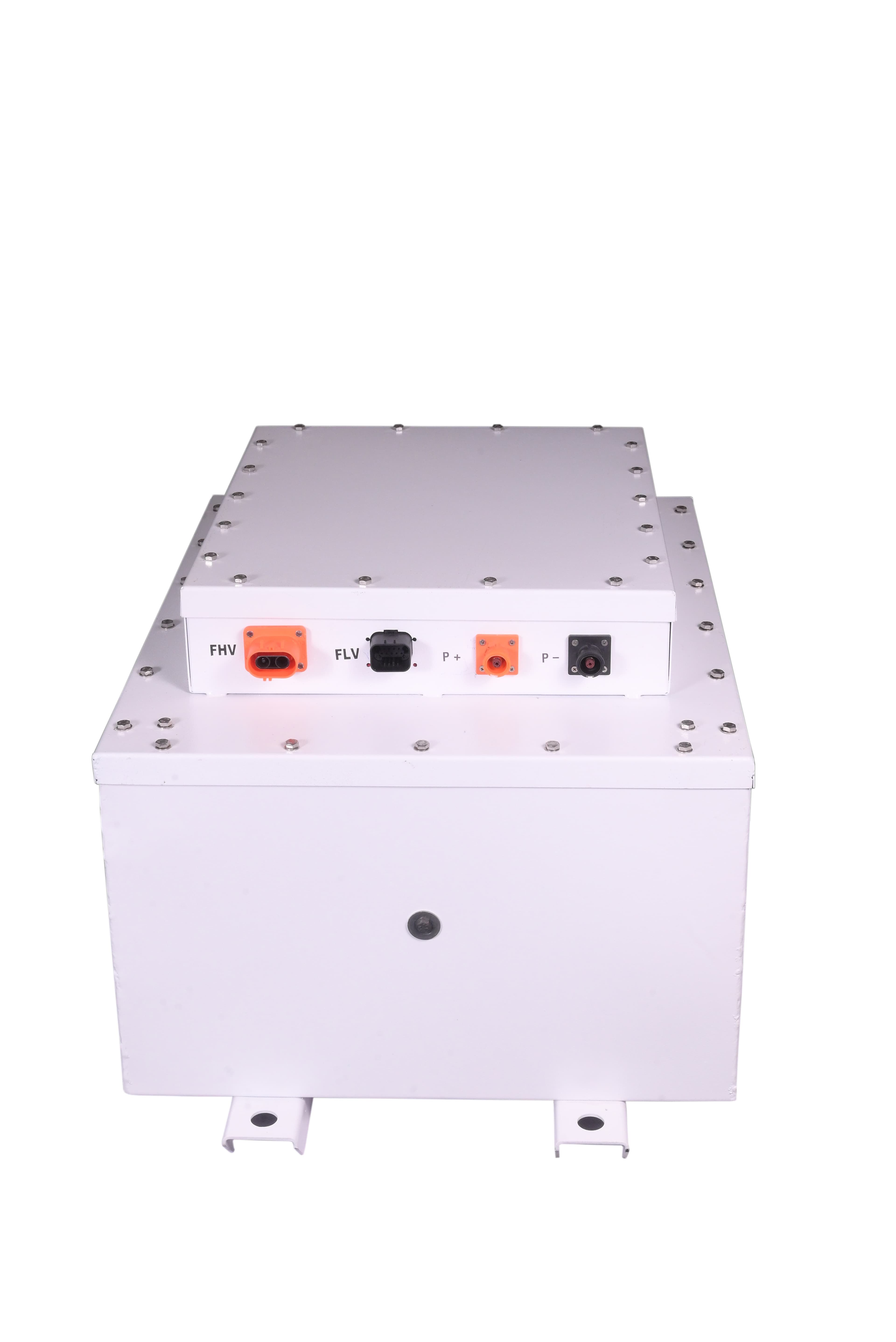

PST 10.24kWh EV · 51.2V 200Ah
A 51.2 V, 200 Ah LiFePO₄ pack providing 10.24 kWh for high-load electric vehicles, with an EV-grade smart BMS and rugged construction. Published uses include cargo vehicles, e-rickshaws, golf carts and material handling.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Chemistry | LiFePO₄ (lithium iron phosphate) |
|---|---|
| Cell type | Prismatic |
| Nominal voltage | 51.2 V |
| Rated capacity | 200 Ah |
| Energy | 10.24 kWh |
| Operating voltage | 43.2 V – 57.6 V |
| Charge current | 100 A (0.5C) |
| Discharge current | 200 A (1C) |
| Dimensions (mm) | 690 × 500 × 450 |
|---|---|
| Weight | 115 kg |
| IP rating | IP54 |
|---|---|
| Operating temperature | 0 to 55 °C |
| Communication | RS485 / CAN 2.0 / Bluetooth (optional) |
| Cycle life | ≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | 3 years or 3000 cycles, whichever comes first |
See solution guides: Forklifts & pallet stackers, EV & electric mobility
Ah (200 Ah) is charge capacity at the nominal voltage; kWh (10.24 kWh) is stored energy, equal to 51.2 V × 200 Ah. Energy is what determines how long a load can run.
Published: RS485 / CAN 2.0 / Bluetooth (optional). Compatibility with a specific inverter or controller is not stated on the datasheet — ask us to confirm for your equipment.
The enclosure is rated IP54. Please follow the datasheet and installation guidance for the environment.
≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
