PST 19.2kWh EV · 96V 200Ah

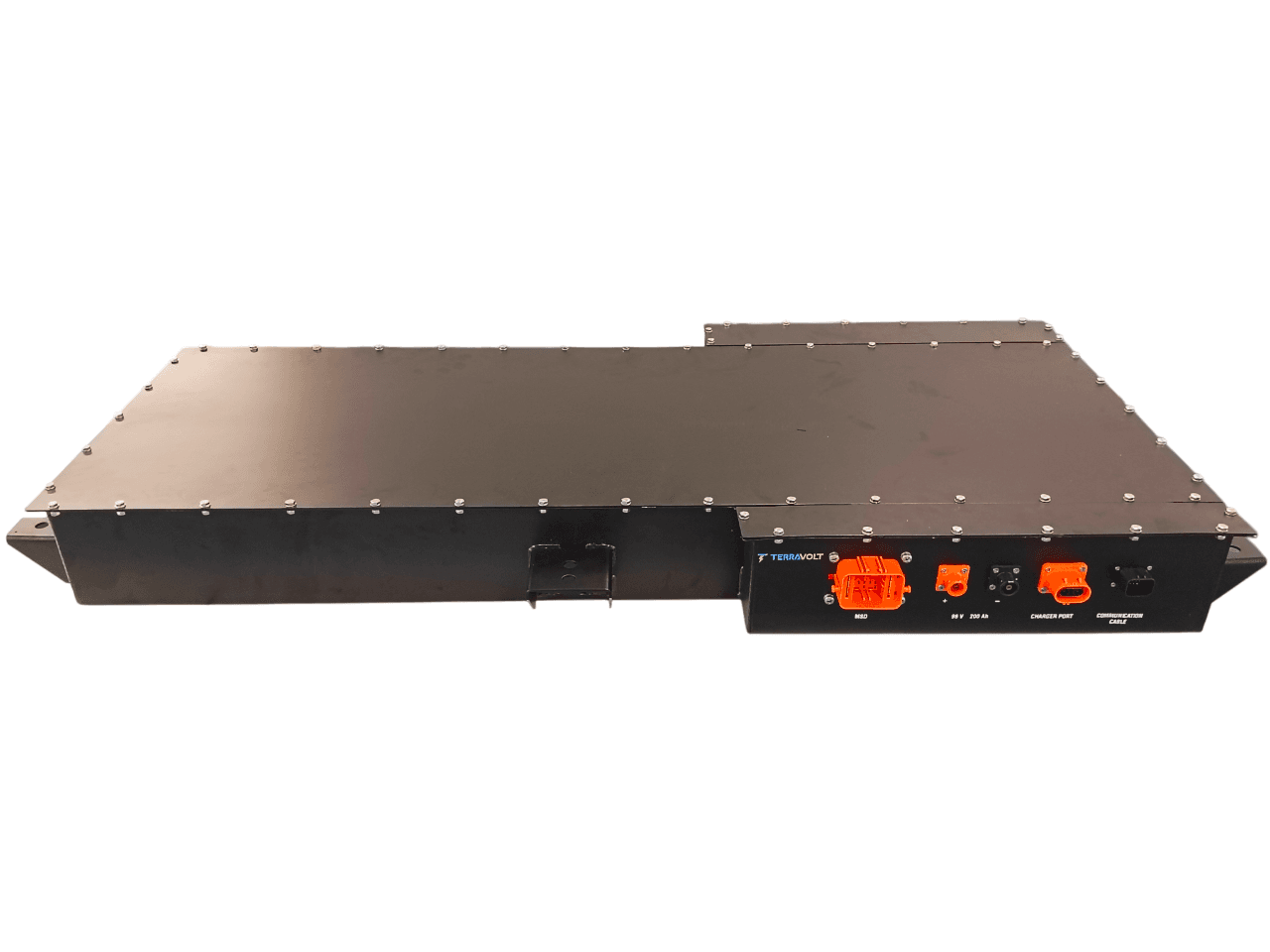

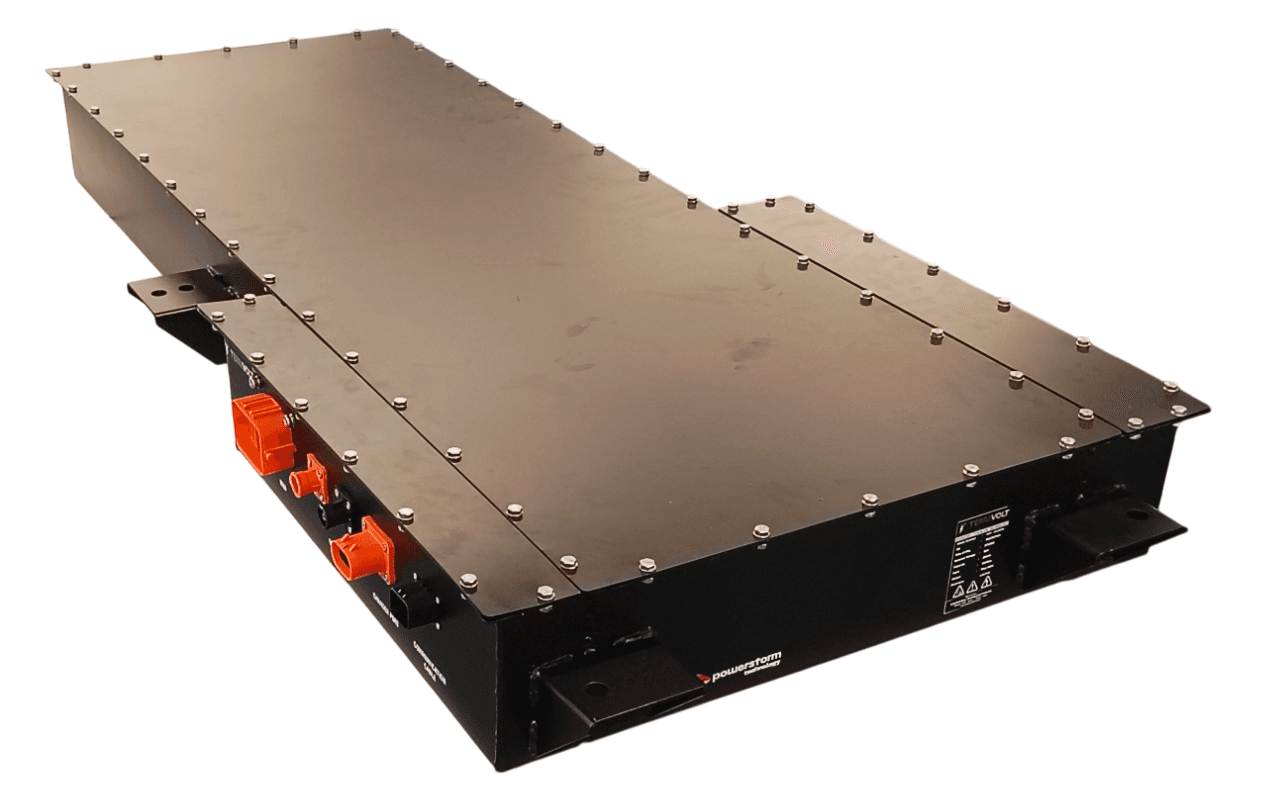

A high-capacity, high-voltage LiFePO₄ pack with prismatic cells for electric vehicles, with an integrated BMS offering optional CAN, RS485 or Bluetooth communication and an IP55 enclosure.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Chemistry | LiFePO₄ (lithium iron phosphate) |
|---|---|
| Cell type | Prismatic |
| Nominal voltage | 96 V |
| Rated capacity | 200 Ah |
| Energy | 19.2 kWh |
| Operating voltage | 84 V – 108 V |
| Charge current | 100 A (0.5C) |
| Discharge current | 200 A (1C) |
| Dimensions (mm) | 1551 × 664 × 142 |
|---|---|
| Weight | 187 kg |
| IP rating | IP55 |
|---|---|
| Operating temperature | 0 to 55 °C |
| Communication | RS485 / CAN 2.0 / Bluetooth (optional) |
| Cycle life | ≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | 3 years or 3000 cycles, whichever comes first |
See solution guides: EV & electric mobility
Ah (200 Ah) is charge capacity at the nominal voltage; kWh (19.2 kWh) is stored energy, equal to 96 V × 200 Ah. Energy is what determines how long a load can run.
Published: RS485 / CAN 2.0 / Bluetooth (optional). Compatibility with a specific inverter or controller is not stated on the datasheet — ask us to confirm for your equipment.
The enclosure is rated IP55. Please follow the datasheet and installation guidance for the environment.
≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
EV packs
High-capacity 51.2 V, 200 Ah LiFePO₄ EV pack for heavier-duty electric vehicles.
Send us your requirement — voltage, capacity, application — and our team will respond with the most suitable option from the range, or confirm what can be customised.
