PST 5.12kWh LiFePO4 EV Battery Pack
- Energy
- 5.12 kWh
- Voltage
- 51.2 V
- Capacity
- 100 Ah
51.2 V, 100 Ah LiFePO₄ EV pack with IP55 enclosure for light electric-mobility and material handling.
Loading…
EV Battery Packs

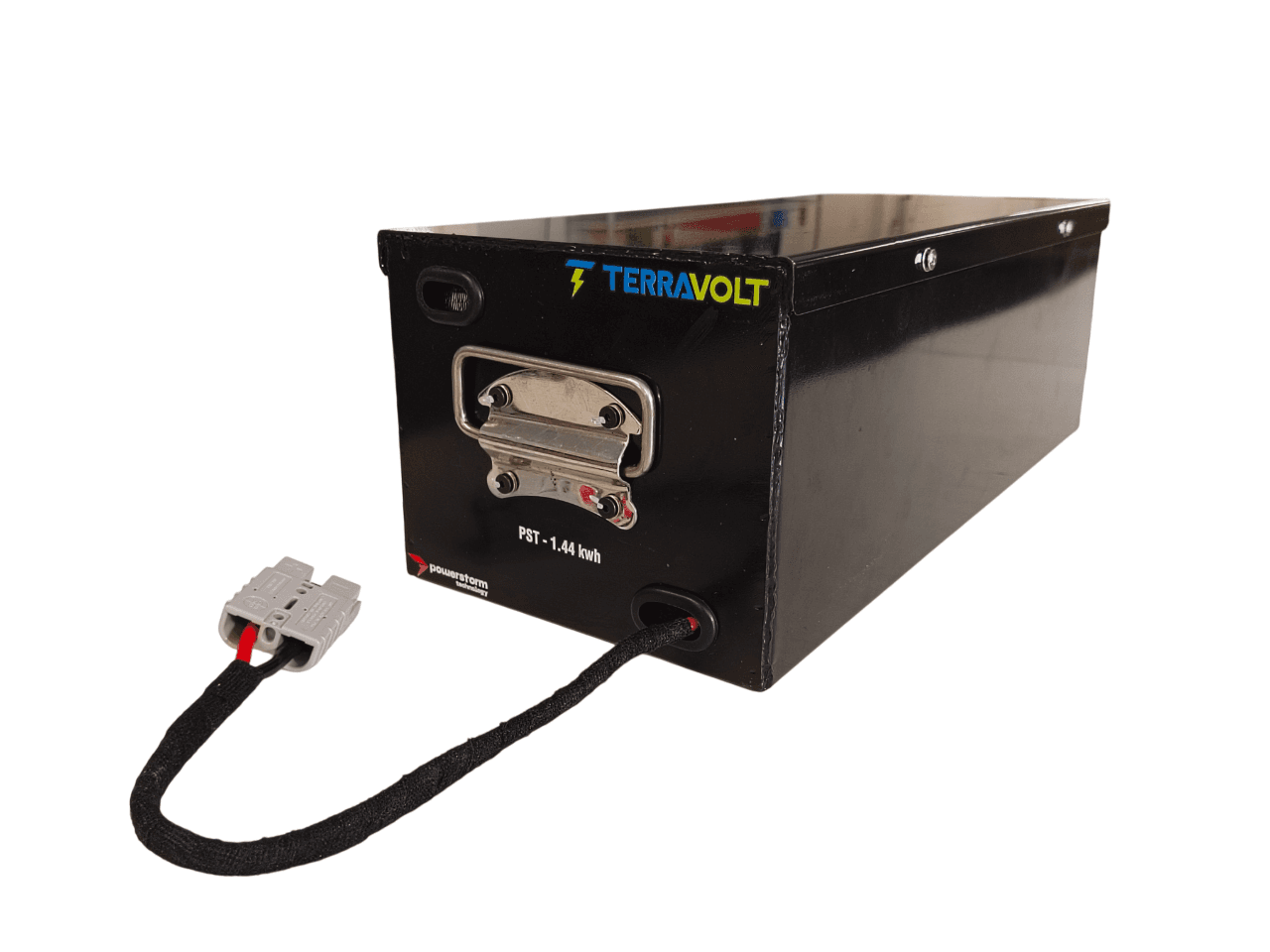

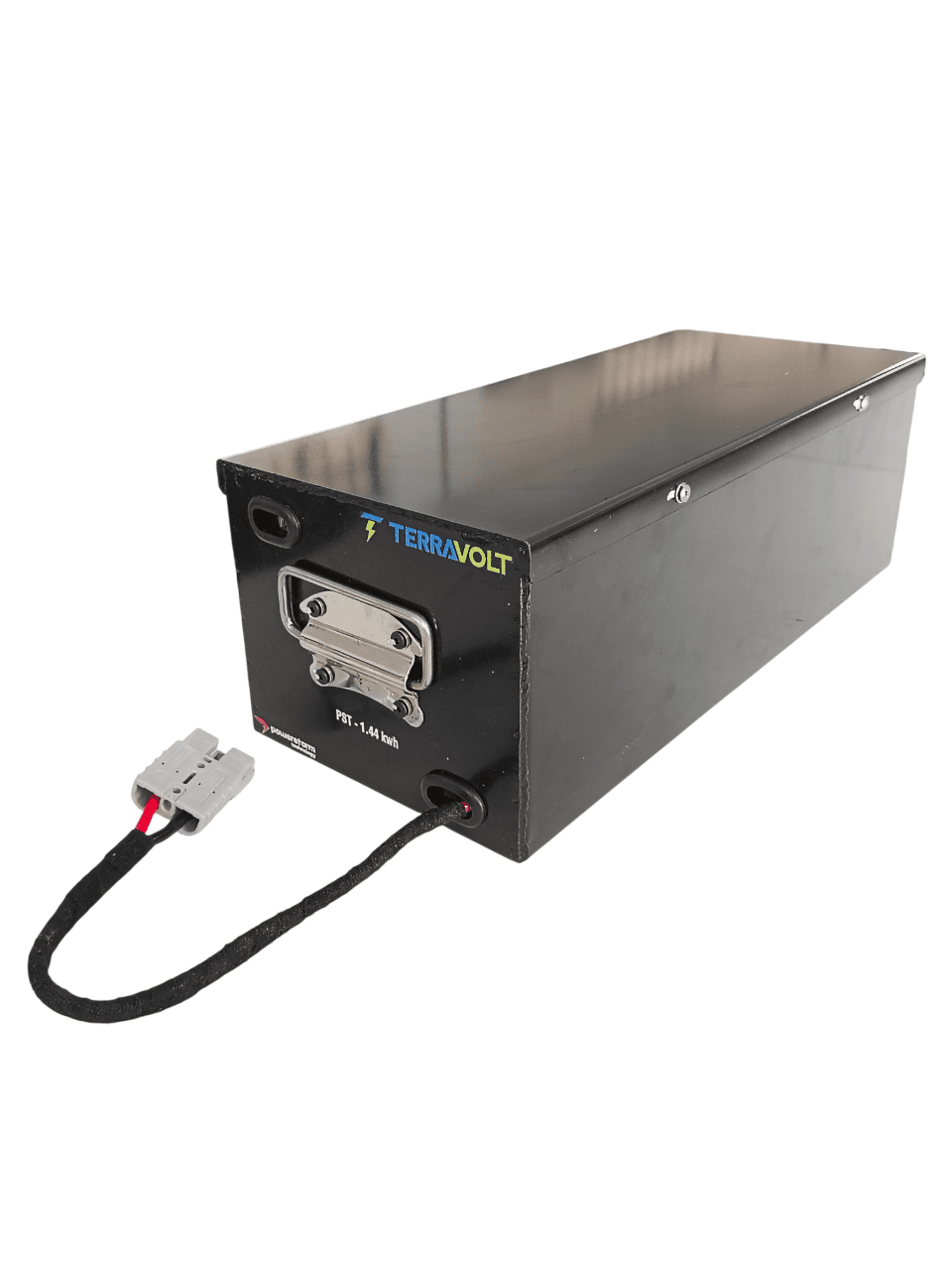

PST 1.44kWh EV · 48V 30Ah
A compact, lightweight 48 V LiFePO₄ pack with an integrated smart BMS, aimed at electric scooters, bikes, e-rickshaws and other lightweight EV platforms.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Cell type | Cylindrical |
|---|---|
| Nominal voltage | 48 V |
| Rated capacity | 30 Ah |
| Energy | 1.44 kWh |
| Operating voltage | 40.5 V – 54 V |
| Charge current | 15 A |
| Discharge current | 30 A |
| Dimensions (mm) | 407 × 120 × 189 |
|---|---|
| Weight | 14 kg |
| IP rating | IP54 |
|---|---|
| Operating temperature | 0 to 55 °C |
| Cycle life | ≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | 3 years or 3000 cycles, whichever comes first |
See solution guides: EV & electric mobility
Ah (30 Ah) is charge capacity at the nominal voltage; kWh (1.44 kWh) is stored energy, equal to 48 V × 30 Ah. Energy is what determines how long a load can run.
The enclosure is rated IP54. Please follow the datasheet and installation guidance for the environment.
≥ 3000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
EV packs
51.2 V, 100 Ah LiFePO₄ EV pack with IP55 enclosure for light electric-mobility and material handling.
Send us your requirement — voltage, capacity, application — and our team will respond with the most suitable option from the range, or confirm what can be customised.
