ESS packs
PST 4.8kWh LiFePO4 Battery Pack
- Energy
- 4.8 kWh
- Voltage
- 48 V
- Capacity
- 100 Ah
Modular 48 V, 100 Ah LiFePO₄ pack for solar, inverter and industrial backup.
Loading…
ESS Battery Packs

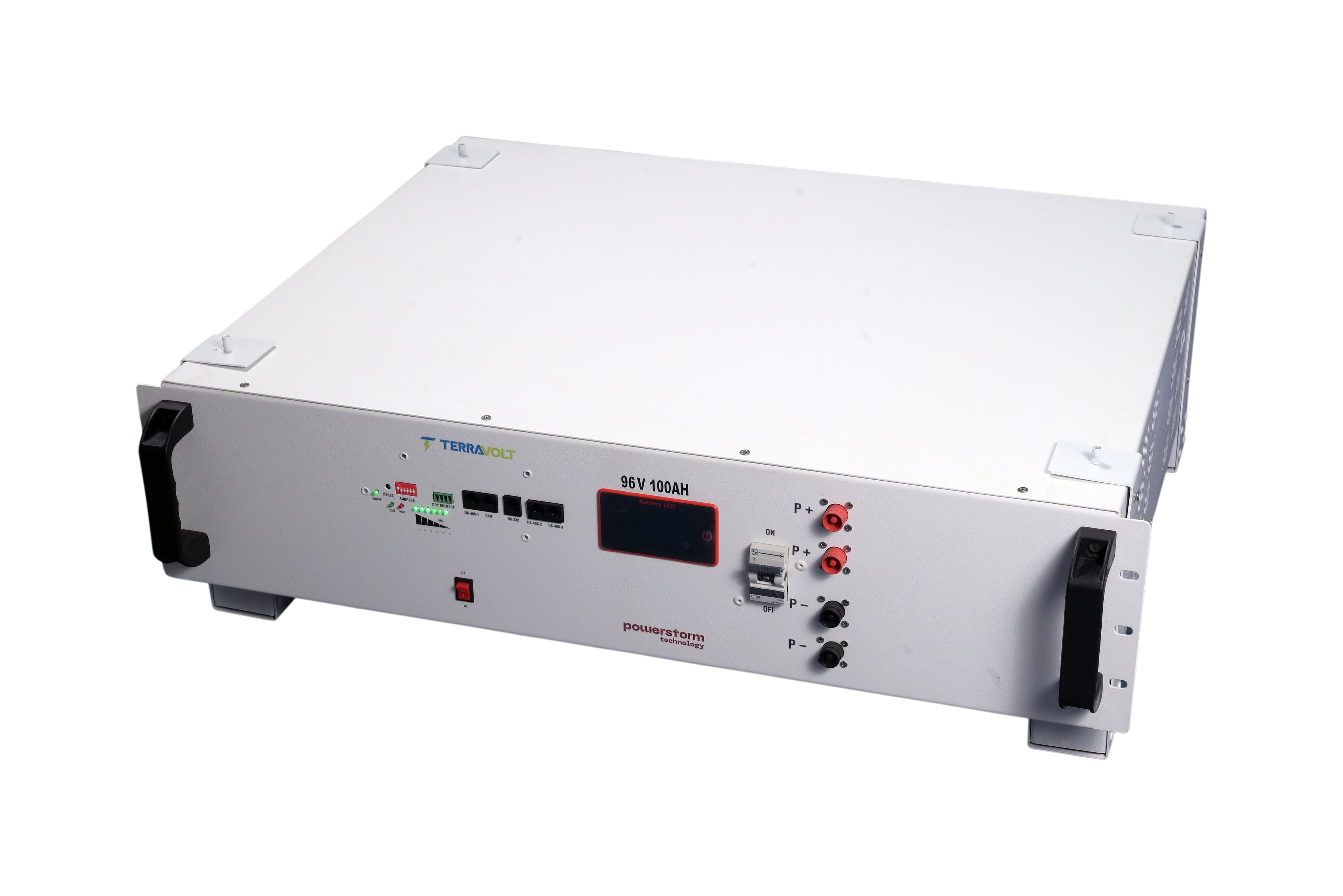

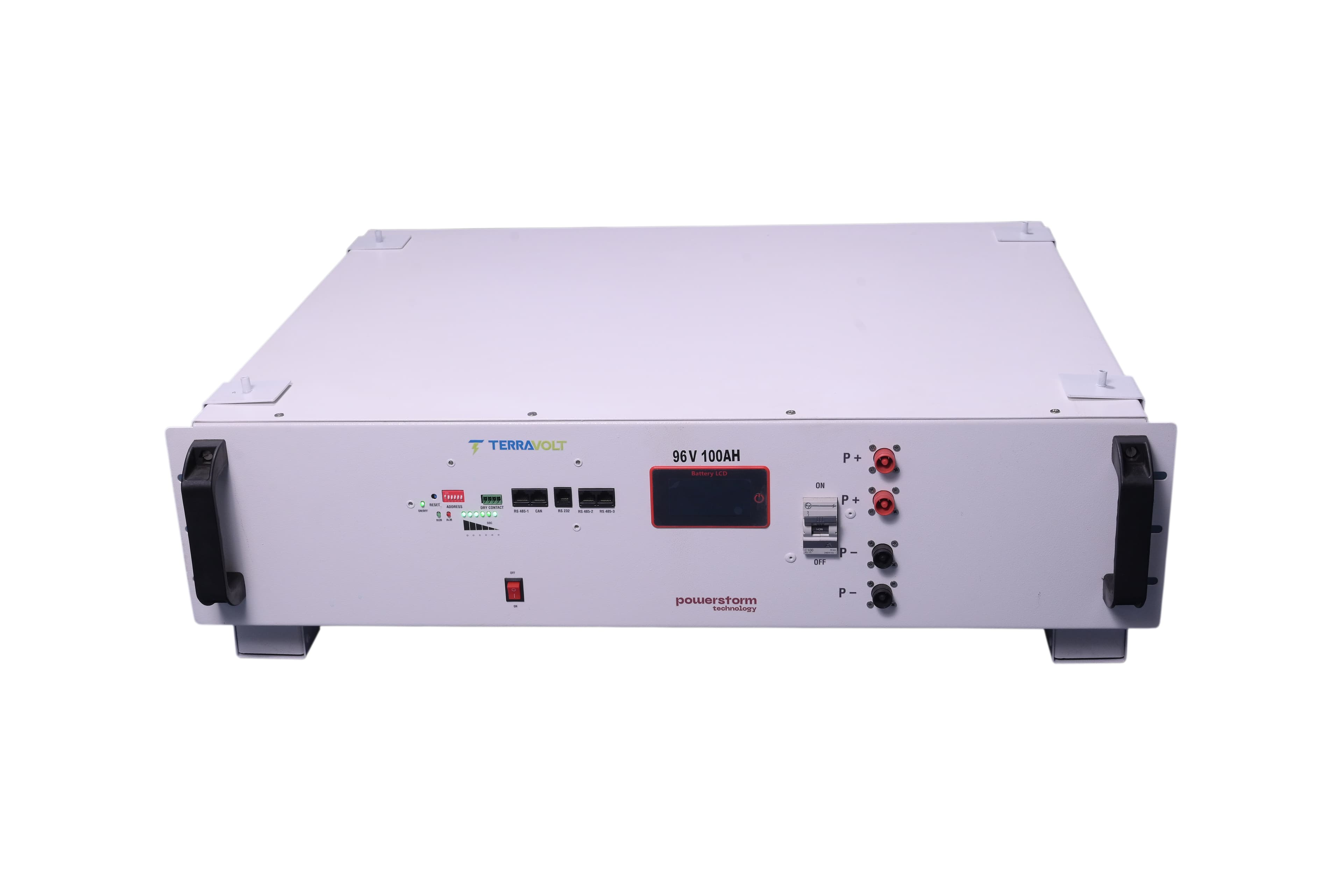

PST 9.6kWh · 96V 100Ah
A high-capacity LiFePO₄ energy-storage pack with a smart BMS and active balancing, designed for demanding industrial, commercial and renewable-energy applications.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Chemistry | LiFePO₄ (lithium iron phosphate) |
|---|---|
| Cell type | Prismatic |
| Nominal voltage | 96 V |
| Rated capacity | 100 Ah |
| Energy | 9.6 kWh |
| Operating voltage | 84 V – 108 V |
| Charge current | 50 A (0.5C) |
| Discharge current | 100 A (1C) |
| Balancing | 3 A active balancing |
| Scalability | Up to 15 packs in parallel |
| Dimensions (mm) | 600 × 778 × 180 |
|---|---|
| Weight | 90 kg |
| Installation | Rack mount or leg mount (optional) |
| IP rating | IP20 (indoor use) |
|---|---|
| Operating temperature | 0 to 55 °C |
| Communication | RS485 / CAN 2.0 / RS232 |
| Cycle life | ≥ 6000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | Cells: 6000 cycles or 10 years, whichever comes first |
See solution guides: Solar & energy storage, Industrial & commercial backup
Ah (100 Ah) is charge capacity at the nominal voltage; kWh (9.6 kWh) is stored energy, equal to 96 V × 100 Ah. Energy is what determines how long a load can run.
The published specification states: up to 15 packs in parallel. Confirm your configuration with our team before purchase.
Published: RS485 / CAN 2.0 / RS232. Compatibility with a specific inverter or controller is not stated on the datasheet — ask us to confirm for your equipment.
The enclosure is rated IP20 (indoor use). Please follow the datasheet and installation guidance for the environment.
≥ 6000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
ESS packs
Modular 48 V, 100 Ah LiFePO₄ pack for solar, inverter and industrial backup.
ESS packs
51.2 V, 100 Ah rack-mount LiFePO₄ pack with LCD, active balancing and 15-pack scalability.
Send us your requirement — voltage, capacity, application — and our team will respond with the most suitable option from the range, or confirm what can be customised.
