ESS Battery Packs

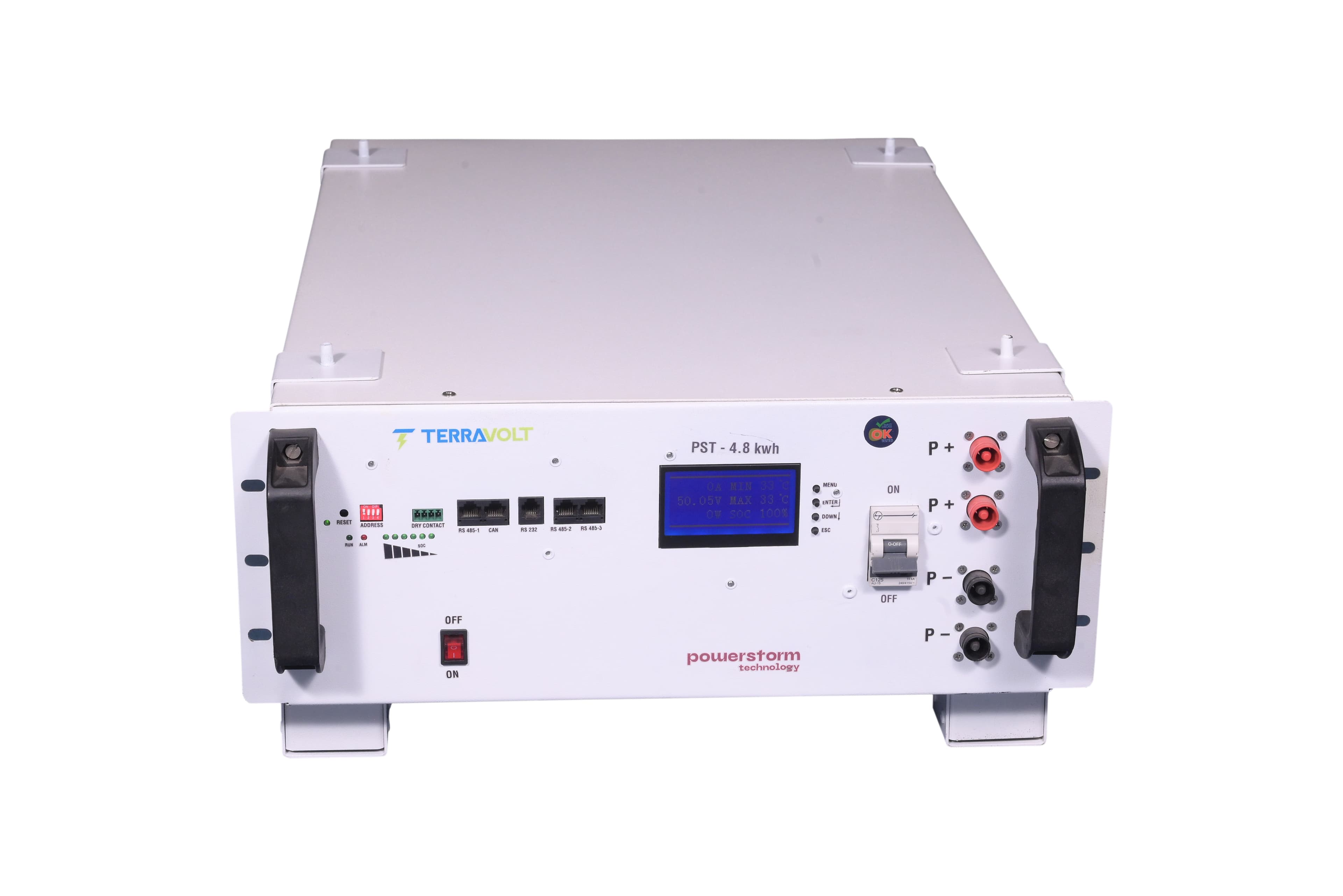

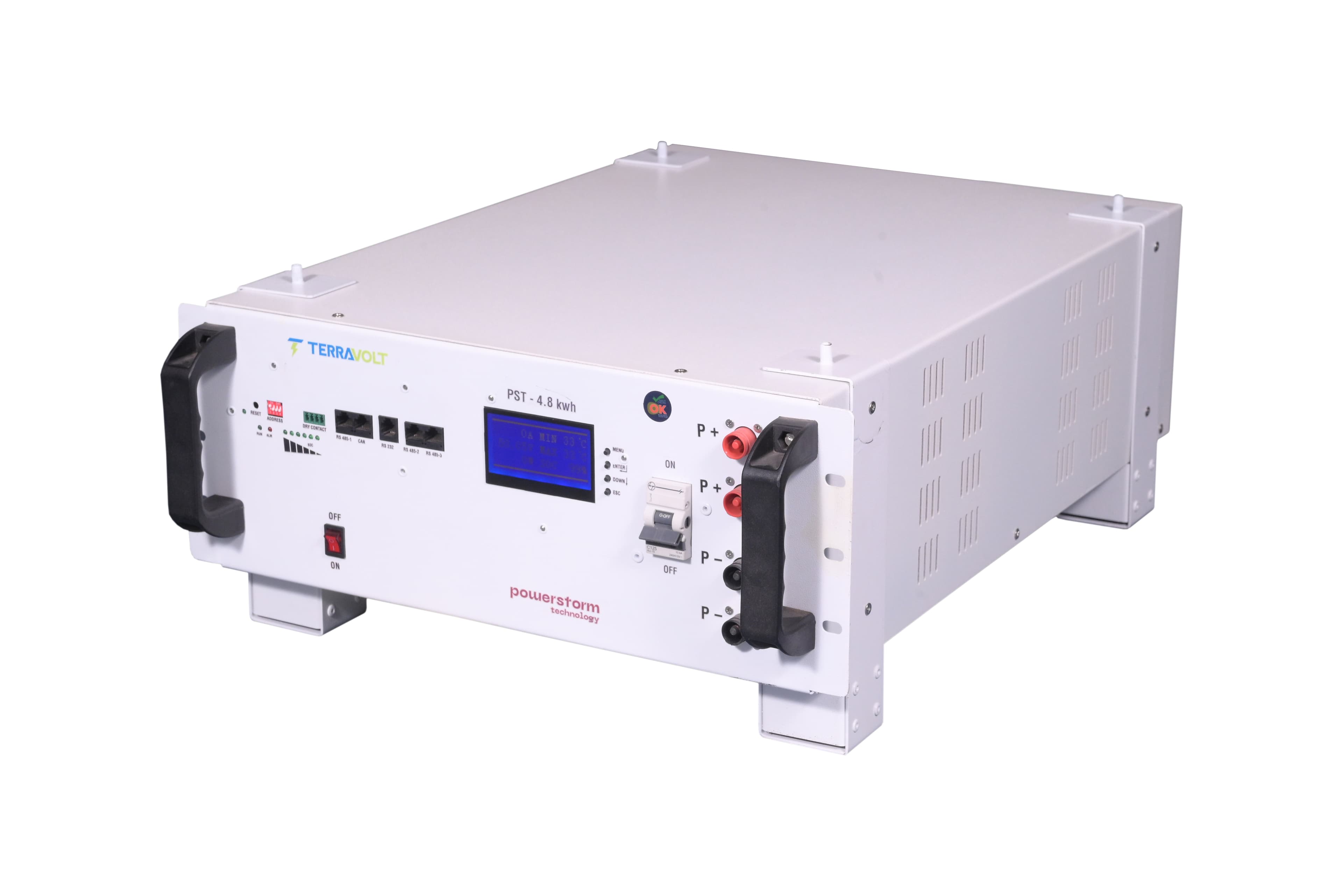

PST 4.8kWh · 48V 100Ah
A modular 48 V LiFePO₄ pack with an integrated battery management system, positioned for solar storage, inverter/UPS backup and industrial power backup. Packs can be paralleled for more capacity.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Chemistry | LiFePO₄ (lithium iron phosphate) |
|---|---|
| Cell type | Prismatic |
| Nominal voltage | 48 V |
| Rated capacity | 100 Ah |
| Energy | 4.8 kWh |
| Operating voltage | 40.5 V – 54 V |
| Charge current | 50 A (0.5C) |
| Discharge current | 100 A (1C) |
| Balancing | 3 A active balancing |
| Scalability | Up to 15 packs in parallel |
| Dimensions (mm) | 600 × 481 × 180 |
|---|---|
| Weight | 49 kg |
| Installation | Rack mount or leg mount (optional) |
| IP rating | IP20 (indoor use) |
|---|---|
| Operating temperature | 0 to 55 °C |
| Communication | RS485 / CAN 2.0 / RS232 |
| Cycle life | ≥ 6000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | Cells: 6000 cycles or 10 years, whichever comes first |
See solution guides: Solar & energy storage, Industrial & commercial backup
Ah (100 Ah) is charge capacity at the nominal voltage; kWh (4.8 kWh) is stored energy, equal to 48 V × 100 Ah. Energy is what determines how long a load can run.
The published specification states: up to 15 packs in parallel. Confirm your configuration with our team before purchase.
Published: RS485 / CAN 2.0 / RS232. Compatibility with a specific inverter or controller is not stated on the datasheet — ask us to confirm for your equipment.
The enclosure is rated IP20 (indoor use). Please follow the datasheet and installation guidance for the environment.
≥ 6000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
