ESS packs
PST 5.12kWh LiFePO4 Battery Pack
- Energy
- 5.12 kWh
- Voltage
- 51.2 V
- Capacity
- 100 Ah
51.2 V, 100 Ah rack-mount LiFePO₄ pack with LCD, active balancing and 15-pack scalability.
Loading…
BESS

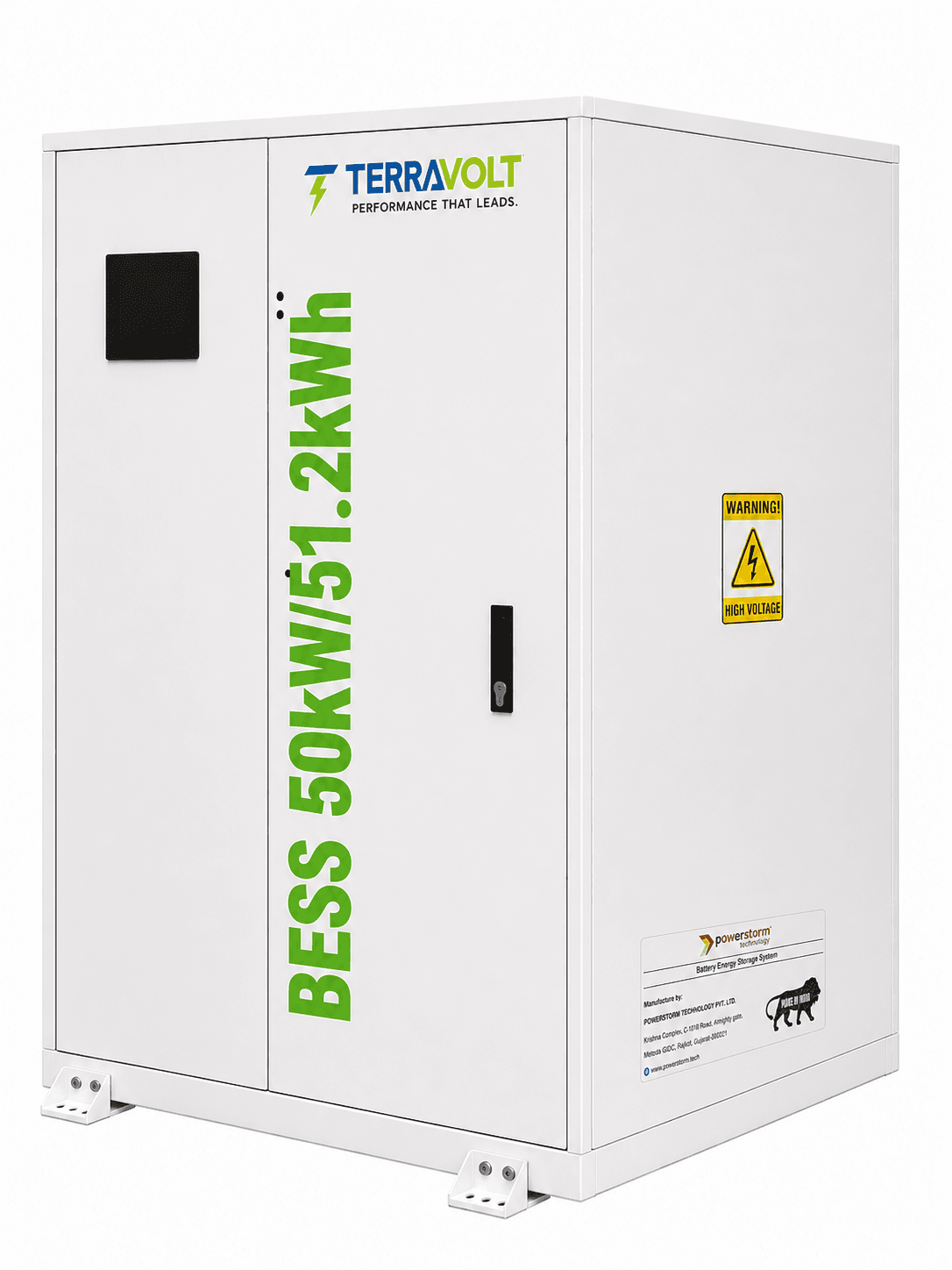

BESS 50kW/51.2kWh

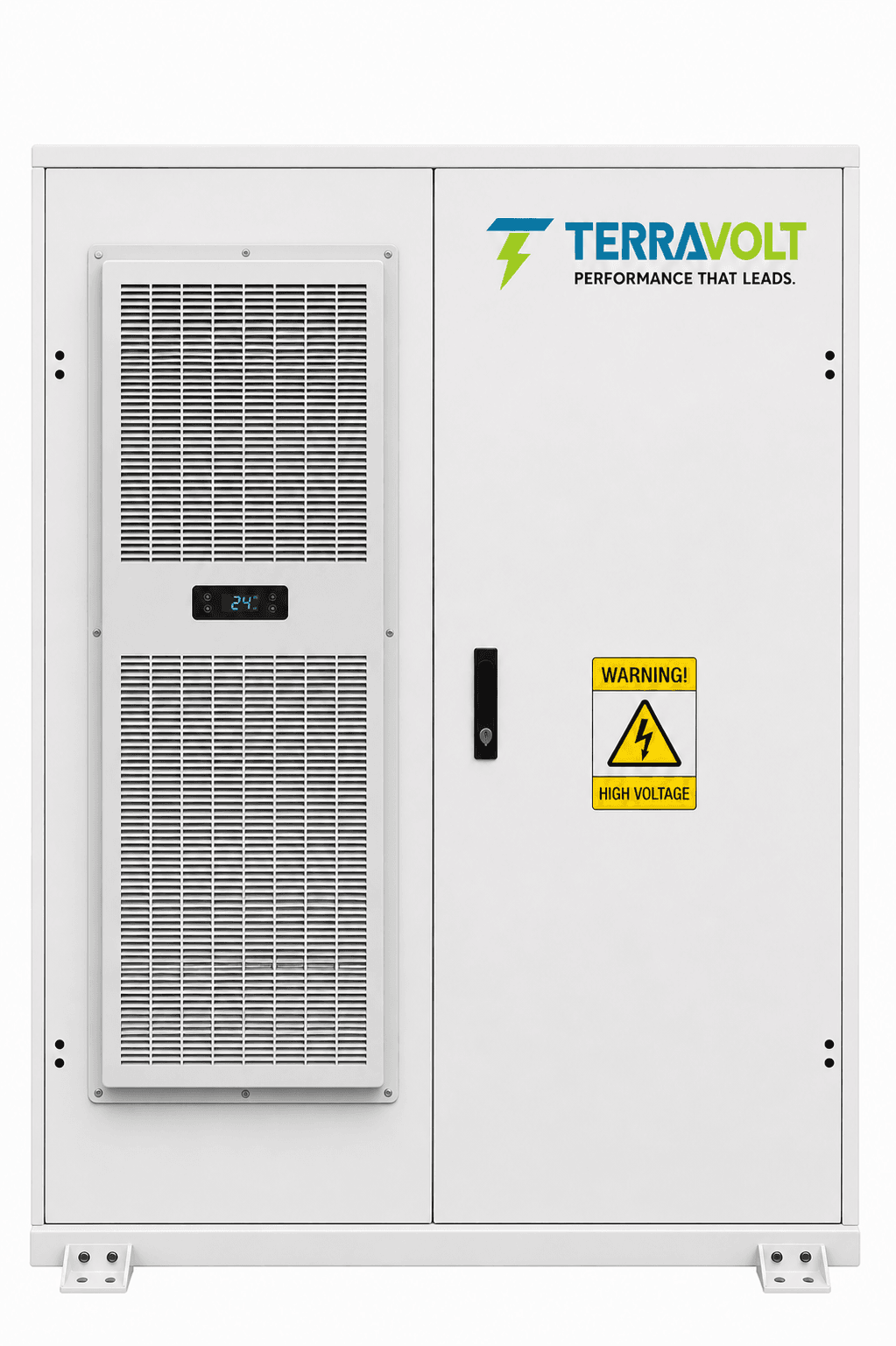

A cabinet-format battery energy storage system combining a 51.2 kWh LiFePO₄ battery (512 V nominal, 100 Ah) with a 50 kW three-phase high-voltage hybrid inverter. The 50 kW figure is the inverter's rated power; 51.2 kWh is the battery's stored energy.
Supplied on a quotation basis. Specifications as published by PowerStorm; confirm against the datasheet at the time of order.
| Chemistry | LiFePO₄ (lithium iron phosphate) |
|---|---|
| Nominal voltage | 512 V |
| Rated capacity | 100 Ah |
| Energy | 51.2 kWh |
| Operating voltage | 448 V – 584 V |
| Charge current | 50 A (max, battery) |
| Discharge current | 100 A (max, battery) |
| Dimensions (mm) | 1250 × 1200 × 1750 (L × W × H) |
|---|---|
| Weight | 1000 kg |
| Installation | Floor mounted |
| IP rating | IP54 |
|---|---|
| Operating temperature | −10 to 55 °C |
| Communication | CAN / RS485 / Modbus |
| Cycle life | ≥ 4000 cycles (25 °C, 0.5C charge/discharge, 70% end of life) |
|---|---|
| Warranty | 5 years or 4000 cycles, whichever comes first |
| Depth of discharge | 90% |
|---|---|
| Protections | OV, UV, SC, OC, OT |
| Expansion | Scalable architecture |
| Type | 3-phase HV hybrid |
|---|---|
| Rated power | 50 kW |
| Rated AC voltage | 3P+N+PE, 230/400 V |
| Rated AC frequency | 50–60 Hz |
| Rated AC output current | 72.5 A |
| Power factor | 0.8 leading to 0.8 lagging |
| Battery voltage range | 160 V – 800 V |
| Max charge / discharge current | 50 A + 50 A |
| Communication with BMS | RS485, CAN |
| Cooling | Air cooling |
|---|---|
| Weight tolerance | ± 5% |
50 kW is the inverter's rated power — how much load it can supply at once. 51.2 kWh is the battery's stored energy. They are different measurements and do not by themselves give a runtime.
Ah (100 Ah) is charge capacity at the nominal voltage; kWh (51.2 kWh) is stored energy, equal to 512 V × 100 Ah. Energy is what determines how long a load can run.
Published: CAN / RS485 / Modbus. Compatibility with a specific inverter or controller is not stated on the datasheet — ask us to confirm for your equipment.
The enclosure is rated IP54. Please follow the datasheet and installation guidance for the environment.
≥ 4000 cycles (25 °C, 0.5C charge/discharge, 70% end of life). Real-world life depends on operating conditions.
ESS packs
51.2 V, 100 Ah rack-mount LiFePO₄ pack with LCD, active balancing and 15-pack scalability.
Send us your requirement — voltage, capacity, application — and our team will respond with the most suitable option from the range, or confirm what can be customised.
